Cryogenic Gases: Meaning, Examples, Process, and Uses
Cryogenic gases are gases that exist at extremely low temperatures and are often used in liquid form. Their unique properties make them essential across a wide range of industries, from healthcare and food preservation to industrial manufacturing and energy production. These gases allow for intense cooling and precise temperature control that ordinary refrigeration cannot achieve.
Their value comes from their ability to deliver intense, controlled cooling in ways that ordinary refrigeration cannot achieve.
This guide explains cryogenic gases in a clear Q&A format, covering the meaning, examples, process, uses, storage methods, hazards, and common questions around gases such as nitrogen, carbon dioxide, helium, hydrogen, oxygen, and argon.
1. What Does Cryogenic Mean?
Cryogenic means related to extremely low temperatures. In industrial and scientific contexts, cryogenic temperatures are usually below around -150°C, and many industrial cryogenic applications operate below -180°C.
At these temperatures, gases can turn into liquids, and materials may behave differently. Some materials become easier to grind, preserve, cool, freeze, or process.
2. What Are Cryogenic Gases?
Cryogenic gases are gases that are cooled to extremely low temperatures and often stored or used as liquids. These gases are used when normal cooling methods cannot provide the required temperature, speed, or process control.
When a cryogenic liquid absorbs heat, it vaporizes back into gas. This makes it highly effective for cooling, but it also means cryogenic systems need proper tanks, insulated piping, ventilation, and pressure control.
2.1. What Are the Most Common Cryogenic Gases Examples?
Common cryogenic gases examples include:
- Nitrogen
- Carbon dioxide
- Helium
- Hydrogen
- Oxygen
- Argon
Each gas has different properties and applications. Nitrogen is widely used for freezing and preservation. Carbon dioxide is used in dry ice, refrigeration, and cleaning. Helium is important in ultra-low-temperature research and superconductivity. Hydrogen is used in energy and fuel cell applications. Oxygen and argon are common in industrial and medical gas systems.
2.2. Is Liquid Nitrogen Cryogenic?
Nitrogen is one of the most widely used cryogenics in liquid form. It is colorless, odorless, non-toxic, and inert, which makes it useful across many industries.
It is commonly used for:
- Preserving biological samples.
- Freezing food quickly.
- Cooling chemical reactors.
- Supporting cryotherapy and dermatology procedures.
- Shrink-fitting and industrial cooling.
- Cryogenic grinding and deflashing.
Because liquid nitrogen boils at around -196°C, it can deliver extremely fast cooling compared with conventional refrigeration.
2.3. Is CO2 a Cryogenic Gas?
Yes. Carbon dioxide can be used in cryogenic applications, especially in the form of dry ice or liquid CO2.
CO2 is used in food cooling, cryogenic freezing, refrigerated transport, dry ice blasting, industrial cleaning, and temperature control. In food applications, carbon dioxide and nitrogen are commonly used because they can cool or freeze products quickly while helping preserve quality.
2.4. Is N2O Cryogenic?
Nitrous oxide, or N2O, can be liquefied under pressure and has low-temperature properties, but it is not usually one of the main cryogenic gases discussed in standard industrial cryogenic applications.
When people discuss cryogenic gases in industrial, medical, or food applications, they usually mean nitrogen, oxygen, argon, helium, hydrogen, and carbon dioxide.
3. How Are Cryogenic Gases Made?
Cryogenic gases are produced through cooling, compression, purification, and separation processes. A common example is liquid nitrogen production through air separation.
Air contains mostly nitrogen and oxygen, with smaller amounts of other gases. In an industrial air separation process, air is compressed, purified, and cooled until it liquefies. Because the gases in air have different boiling points, they can be separated and collected.
This cryogenic process allows us to produce gases such as nitrogen, oxygen, and argon in liquid or gaseous form.
3.1 What Is the Cryogenic Process?
The cryogenic process is the use of very low temperatures to cool, liquefy, separate, or preserve gases and materials.
In practice, the process may include compression, cooling, heat exchange, gas purification, expansion, liquefaction, storage, and controlled vaporization. The exact setup depends on the application.
3.2 What Is the Cryogenic Cycle?
A cryogenic cycle is the repeated cooling and heat exchange system that allows gases to reach and maintain very low temperatures.
In many cryogenic systems, gas is compressed, cooled, expanded, and passed through heat exchangers. This cycle continues until the required low temperature is reached. In some applications, the goal is to liquefy gas. In others, the goal is to keep a process, product, or material at a specific low temperature.
4. What Are Cryogenic Gases Used For?
Cryogenic gases uses depend on the industry, but their main value is fast and controlled cooling.
- In healthcare, liquid nitrogen is used in cryopreservation and cryotherapy. Biological samples such as blood, cells, tissues, and reproductive materials can be stored at extremely low temperatures to preserve their characteristics.
- In food production, cryogenic gases help freeze products quickly. This can protect texture, taste, freshness, and quality. Individual quick freezing, cryogenic tunnels, refrigerated transport, and rapid chilling are common examples.
- In manufacturing, cryogenic gases are used for process cooling, cryo-grinding, rubber deflashing, shrink-fitting, industrial cleaning, and concrete cooling. These applications often require precision temperature control.
- In energy, cryogenic technology is central to LNG production, storage, and transportation. Natural gas is cooled until it becomes liquid, reducing its volume and making it easier to move across long distances.
- In scientific research, helium refrigeration supports ultra-low-temperature experiments, superconductivity, and advanced research systems.
4.1 Why Are Cryogenic Gases Important in Food Production?
Cryogenic gases can cool or freeze food much faster than many conventional refrigeration systems. This rapid freezing can help reduce water loss, protect product texture, and maintain freshness.
4.2 How Are Cryogenic Gases Used in Healthcare?
Healthcare and life science applications rely heavily on liquid nitrogen because of its extremely low boiling point.
- Cryopreservation uses liquid nitrogen to store biological material at very low temperatures. At these temperatures, biological activity is suspended, allowing samples to be preserved for long periods.
- Cryotherapy uses extreme cold to freeze and destroy abnormal tissue. It is commonly used in dermatology for certain skin conditions and is also applied in selected medical procedures where controlled freezing is needed.
4.3 How Are Cryogenic Gases Used in Industrial Processes?
Industrial cryogenics is used when a process needs low temperatures that ordinary cooling cannot provide.
Liquid nitrogen can help control the temperature of chemical reactors. Liquid carbon dioxide or nitrogen can cool materials before grinding. Dry ice or nitrogen blasting can support industrial cleaning. Cryogenic treatment can expose components to extremely low temperatures to improve material performance.
5. What Is a Cryogenic Gas Plant?
A cryogenic gas plant is a facility that produces, separates, liquefies, stores, or supplies gases at extremely low temperatures.
A cryogenic gas plant may include compressors, filtration systems, heat exchangers, distillation columns, insulated tanks, vaporizers, pumps, and control systems. These plants are commonly used for industrial gas production, air separation, and large-scale gas supply.
6. How Are Cryogenic Gases Stored?

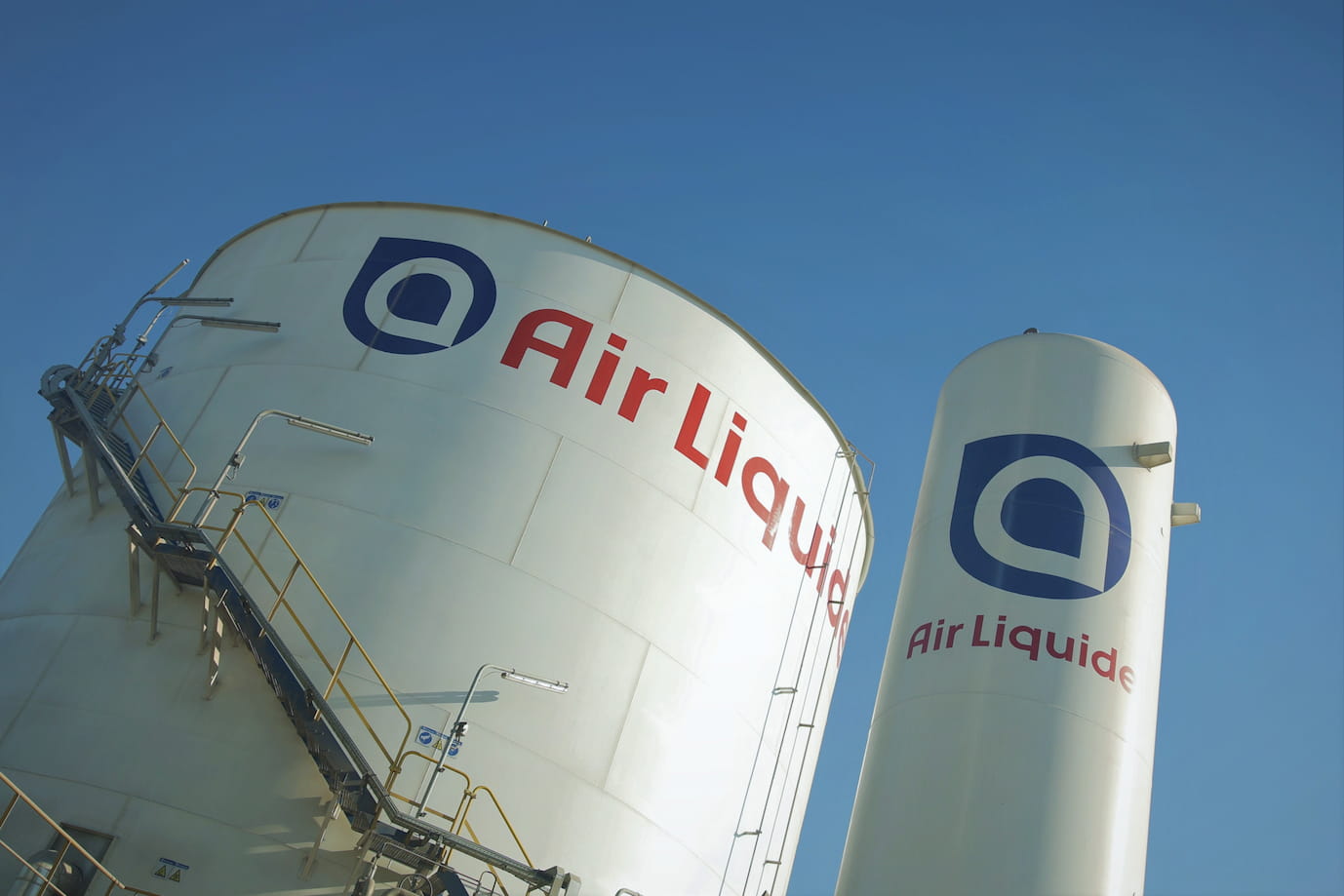

Cryogenic gases are stored in specially designed insulated containers that reduce heat transfer and slow evaporation.
Storage options include dewars, vacuum-insulated vessels, bulk cryogenic tanks, cryogenic ISO tanks, insulated pipelines, and transportable liquid gas tanks.
Liquid nitrogen dewars are common in laboratories, clinics, and smaller industrial applications. Larger operations may use bulk tanks or cryogenic ISO tanks for storage and transport.
7. What Are the Main Cryogenic Hazards?
The main risks come from extreme cold, rapid expansion, oxygen displacement, and pressure buildup.
Direct contact with cryogenic liquids can cause cold burns. Inert gases such as nitrogen, argon, and helium can displace oxygen in enclosed spaces. Carbon dioxide can become harmful when concentration rises. Cryogenic liquids also expand significantly when they vaporize, so pressure relief and ventilation are essential.
Safe cryogenic systems usually depend on proper equipment design, gas detection, ventilation, suitable materials, pressure relief valves, and trained handling.
7.1. Are Cryogenic Gases Toxic?
The answer depends on the gas. Cryogenic gases should always be handled according to their specific properties.
Some cryogenic gases are not toxic in the usual chemical sense. Nitrogen, helium, and argon are inert gases. However, they can still be dangerous because they may displace oxygen in the air.
7.2. What Happens When Cryogenic Gases Are Released?
When cryogenic gases are released, they absorb heat from the surrounding environment and vaporize quickly. This can create a cold vapor cloud and cause a large increase in gas volume.
In open, well-ventilated spaces, the gas can disperse more easily. In enclosed spaces, the released gas may reduce oxygen levels or raise carbon dioxide concentration.
8. Why are Cryogenic Gases Important?
Cryogenic gases are important because they make extreme cooling practical. They support industries that need reliable low-temperature performance, including healthcare, food production, scientific research, industrial manufacturing, construction, clean energy, and gas processing.
Without cryogenic gases, many modern processes would be slower, less precise, or harder to scale.
